Combines a series of finite linear and open curved objects at their common endpoint as a single object
Lines, polylines, arcs and elliptical arc can be join as a single object.
The exterior walls are separate lines
Freeze the Column layer, Hidden layer and Wall_Interior layer
Home tab > Modify panel expand > Join

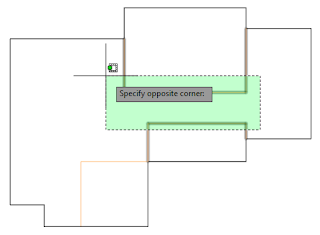

Cross-select all exterior walls
Press [Enter]
All exterior walls join as a single object
Thaw the Wall_Interior layer
Home tab > Modify panel expand > Join
Cross-select the interior walls for bedroom and restroom
Press [Enter]
Both rooms join as individual polyline object
Home tab > Modify panel expand > Join
Cross-select the kitchen walls
Press [Enter]
Kitchen walls join as a single object
Thaw Hidden layer
Home tab > Modify panel expand > Join
Cross-select lines for study area
Press [Enter]
Multiple lines join as a single object
